Load Washers

磁気カード評価試験機

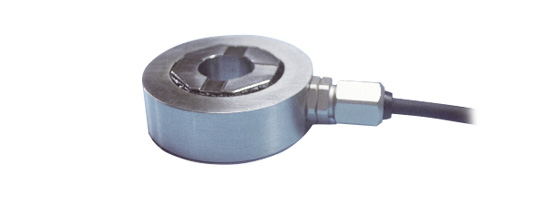

Load Washers - SLDW-P Series

Features

Thin and small size
Both static and dynamic measurements are possible
Shipment after calibration
Available in 10kN to 100kN ratings
Easy signal processing with amplifier
External zero reset function
Higher temporal stability of output than piezoelectric elements

Mechanical specifications

Model Rated torque Sensitivity D D1 D2 H Natural frequency Spring constant Weight
SLDW-P10K 10KN 500mV/kN 23 9 4.5(M4) 11 >45kHz 990N/μm 26g
SLDW-P20K 20KN 250mV/kN 25 12 6.5(M6) 11 >50kHz 1600N/μm 30g
SLDW-P30K 30KN 166mV/kN 28 15 8.5(M8) 11 >55kHz 2400N/μm 37g
SLDW-P50K 50KN 100mV/kN 32 19 10.5(M10) 11 >60kHz 3900N/μm 47g
SLDW-P100K 100KN 50mV/kN 40 27 14.5(M14) 11 >65kHz 8000N/μm 71g

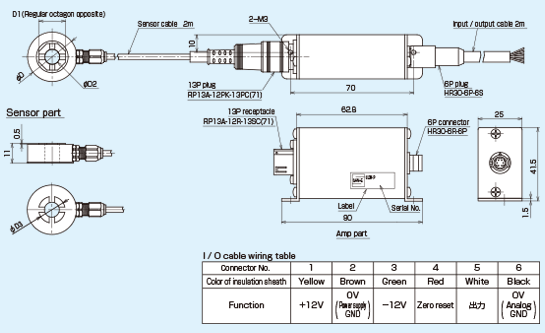

List of dimensions (standard specifications)MTSシリーズ図

Load Washers - SLDW-P Series

Model SLDW−P Series
Rated torque See the table
Nonlinearity Within ±0.15%RO
Hysteresis Within ±0.15%RO
Repeatability 0.3%RO or less
Output voltage 0V〜+5V(Compression direction
Allowable temperature range −10 to +60℃
Zero-point temperature coefficientt Within ±0.05%RO/℃
Power supply voltage ±12V±0.5VDC
Cable φ5mm UL758 AWG24 6-core lateral winding shielded wire 2m
Allowable overload 150%
Materials S45C
Vibration performance JIS D 1601
*The load is from the center of the φ12h7 surface (P500 to P5K) or flange surface (P10K to P500K).

How to install

Be sure to apply load in the measuring axis direction
The surface for mounting the sensor should be flat and should not be dirty as it causes tilting.




磁気カード評価試験機

Embedded Load Washers - SLCW-P Series

Features

Most suitable for embedding into mass production products
High responsiveness and good linearity
Thin and small size
Both static and dynamic measurements are possible
Low-priced
Available in 10kN to 100kN ratings
Single power supply operation
Higher temporal stability of output than piezoelectric elements
Sensor part and Amplifier part can be separated by the connector

Mechanical specifications

Model Rated torque Sensitivity D D1 D2 H Natural frequency Spring constant Weight
SLCW-P10K 10KN 500mV/kN 23 9 4.5(M4) 11 >45kHz 990N/μm 26g
SLCW-P20K 20KN 250mV/kN 25 12 6.5(M6) 11 >50kHz 1600N/μm 30g
SLCW-P30K 30KN 166mV/kN 28 15 8.5(M8) 11 >55kHz 2400N/μm 37g
SLCW-P50K 50KN 100mV/kN 32 19 10.5(M10) 11 >60kHz 3900N/μm 47g
SLCW-P100K 100KN 50mV/kN 40 27 14.5(M14) 11 >65kHz 8000N/μm 71g



List of dimensions (standard specifications)MTSシリーズ図

Standard specifications

Rated torque 10kN to 100kN
Power supply voltage DC+5V
Current consumption Approx. 200mA
Output voltage 0V to +5V
Responsiveness to 1kHz
Allowable overload 150%
Operating temperature range Sensor part −40℃ to +125℃
Amplifier part −10℃ to+60℃
Humidity range 15% R.H.〜85% R.H. (No condensation
