Load Sensors

磁歪式ロードセンサ

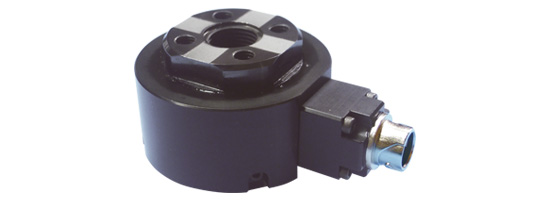

Load Sensors - SLDS-P Series

Features
Not affected by magnetic fields and high durability
High flexibility of installation by the compact shape
Shipment after calibration
Available in 0.5kN to 500kN ratings
High responsiveness by high rigidity

Mechanical specifications
Model Rated torquey Sensitivity Natural frequency Spring constant Weight
SLDS-P500 0.5KN 10000mV/kN >6kHz 90N/μm 50g
SLDS-P1K 1KN 5000mV/kN >7kHz 150N/μm 70g
SLDS-P5K 5KN 1000mV/kN >9kHz 340N/μm 100g
SLDS-P10K 10KN 500mV/kN >10kHz 660N/μm 160g
SLDS-P50K 50KN 100mV/kN >13kHz 2230N/μm 330g
SLDS-P100K 100KN 50mV/kN >12kHz 3770N/μm 640g
SLDS-P200K 200KN 25mV/kN >9kHz 5560N/μm 1.5kg
SLDS-P500K 500KN 10mV/kN >5kHz 5790N/μm 5.8kg



MTSシリーズ図

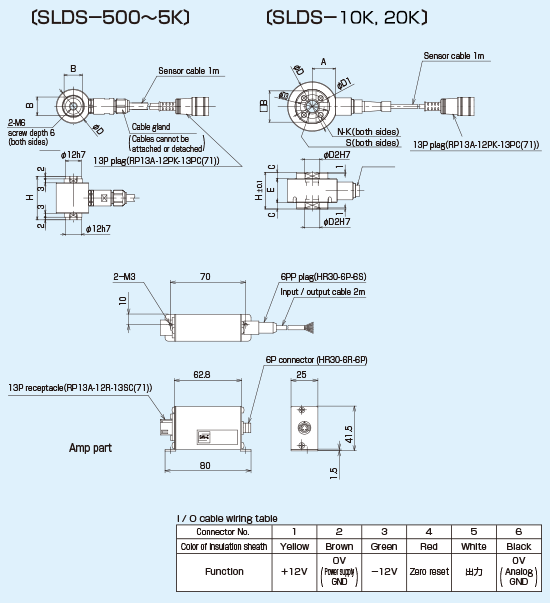

List of dimensions (standard specifications)

Model D D1 D2 D3 H A B C E N K S
SLDS-P500 22 30 12
SLDS-P1K 24 30 12
SLDS-P5K 26 30 14
SLDS-P10K 36 22 8 16 26 16.5 20 4 18 4 M3 M8×1
SLDS-P50K 46 32 12 22 34 21.5 29 6 22 4 M5 M12×1
SLDS-P100K 60 44 18 32 42 29 41 8 26 4 M8 M17×1
SLDS-P200K 76 60 25 45 60 37 56 12 36 4 M10 M24×1
SLDS-P500K 106 90 40 68 136 50 85 25 86 8 M16 M40×1.5


Standard specificationsLoad Sensors - SLDS-P Series

Model SLDS−P Series
Rated torque See the table.
Nonlinearity Within ±0.15%RO
Hysteresis Within ±0.15%RO
Repeatability 0.3%RO or less
Output voltage Only compression:0V to +5V
Compression and tension:−2.5V to +5V
Allowable temperature range −10 to+60℃
Zero-point temperature coefficient Within±0.05%RO/℃
Power supply voltage ±12V±0.5VDC
Cable φ5mm UL758 AWG24 6-core lateral winding shielded wire 2m
Allowable overload 150%
Materials SUS 303/304
Vibration performance JIS D 1601
*The load is from the center of the φ12h7 surface (P500 to P5K) or flange surface (P10K to P500K).
