Magnetic Heads for Parking Lots and Financial Equipment
Products corresponding to JIS Standard and custom specifications are available.

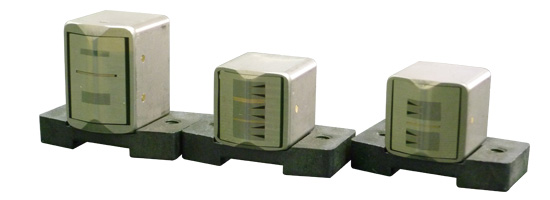

Magnetic Heads for Parking Lots
■Main applications
●The magnetic heads are
used for the charge collection systems at parking lots.
■List of performances
| Standard | JIS-Ⅰ | JIS-Ⅱ | Custom type | |
|---|---|---|---|---|
Track width |
Read |
1mm | 2mm |
1 to 2mm |
| Write | 3mm | 7mm | 3 to 8mm | |
| Number of tracks | 3 | 1 | 1 to 3 | |
| Transport speed | 10 to 100cm/sec | |||
| Recording density | to 420FCI | |||
| Recording medium | 21．5 to 239ｋA/m（270 to 3000Oe） | |||
| Overwrite | －40ｄBV or less | |||
Magnetic heads for passbooks, magnetic heads for banknote discrimination that read magnetic ink used for banknotes

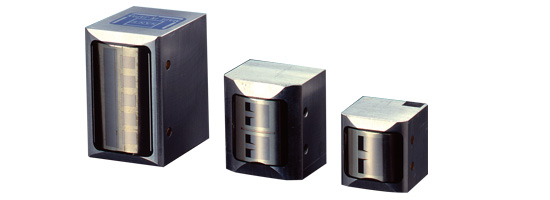

Magnetic heads for passbooks
■Features
●Track configuration: 1 track to multiple tracks
●Transport speed: to 100cm/sec
●Recording density: to 420FCI
●Recording medium: 21.5KA/m to 219KA/m (270Oe to 2750Oe)
■Main applications
●ATM (automated-teller machine)

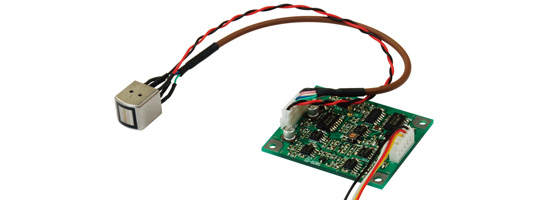

Magnetic heads for banknote discrimination that read magnetic ink used for banknotes
Differential type magnetic heads for banknote discrimination
■Features
●Ultra high sensitivity that allows reading of reverse side of banknotes
●React to a small amount of metal pigment
●Deal with spacing loss of 0.2mm
●Deal with ultrafast processing: 10m/sec
●Standstill type that produces output, regardless of speed
■Main applications
●Bank note discrimination for financial institutions and various other industries
Magnetic heads for reading and writing ID of credit cards and membership cards
We can provide products for card readers of JIS, ISO, and IATA standards.

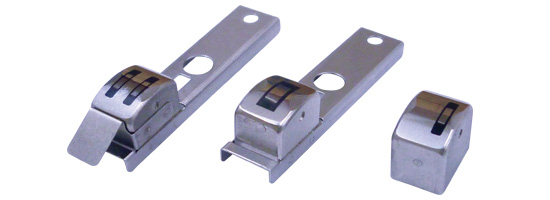

Magnetic heads for card readers
■Main applications
●Magnetic heads for
credit cards, cash cards, other prepaid cards, and manual hand readers
| Model | CH-1R/CH-1R2R | CH-123CS3H | PC-2R | CH-72S3H | |
|---|---|---|---|---|---|
| Standard | JIS-Ⅰ | JIS-Ⅰ | JIS-Ⅱ | JIS-Ⅱ | |
| Function |
Read | Read/Write | Read | Read/Write | |
Track width |
Read |
1mm | 1mm |
2mm | 2mm |
| Write | ― | 3mm | ― | 7mm | |
| DC resistance | Read |
95Ω | 265Ω | 125Ω | 200Ω |
| Write | ― | 2.4Ω | ― | 3.2Ω | |
| Inductance | Read |
48mH | 135mH | 105mH | 150mH |
| Write | ― | 3mH | ― | 6.5mH | |
| 23mVp-p | 23mVp-p | 45mVp-p | 50mVp-p | ||
| Conveying speed * | 19cm/sec | ||||
| Recording density * |
210BPI | ||||
| Magnetic tape * | JL6S | ||||
| Resolution (F2/F1) |
80 or more | ||||
| Saturation current（Hc=218kA/ｍ） | ― | 300ｍＡ | ― | 110ｍＡ | |
| Rise time | ― | 100μＳ or less | ― | 100μＳ or less | |
| Insulation resistance | 50ＭΩ or more | ||||
| Ground resistance | 5Ω or less | ||||
*The conveying speed corresponds to 9.5 to 100cm/sec. The recording density corresponds to 75 to 420FCI. The recording medium corresponds to 21.5k to 239kA/m (270 to 3000Oe).
