3-axis Force Torque Sensors

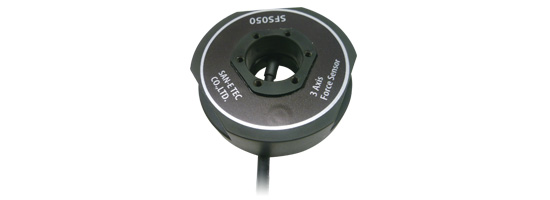

3-axis Force Sensors - Hollow structure model
■Features
●Hollow structure
●Simultaneously detects force 3-axis (Fx, Fy, Fz)
●Possible to measure static and dynamic operation
●High responsiveness of 1kHz that captures quick changes
●Built-in amplifier and microcomputer for load measurement
●Support RS-422 interface
●Built-in low-pass filter function
●Possible to detect overload and abnormal temperature
●Guarantee 500% allowable overload (for Moment: 10Nm)
■Specifications
Items | SFS050 | |
---|---|---|
Rated load | Fx, Fy, Fz | 50N |
Measurement resolution |
Fx, Fy | < 0.02N |
Fz | < 0.02N | |
Power supply voltage | DC +5V | |
Power comsunption | 200mA | |
Output method | RS-422 | |
Responsiveness | 1kHz | |
Non-linearity | ±3%F.S. | |
Other axis sensitivity | ±5%F.S. | |
Allowable overload | 500% (for Moment : 10Nm) | |
Operating temperature | 0 to +50 degree C | |
Humidity range | 15%R.H. to 85%R.H. w/o condensation | |
Diameter | 63mm | |
Hollow diameter | 20mm | |
Height | 20mm | |
Weight | 115g |
Please feel free to contact us if any requirement.
Options
USB conversion cable
