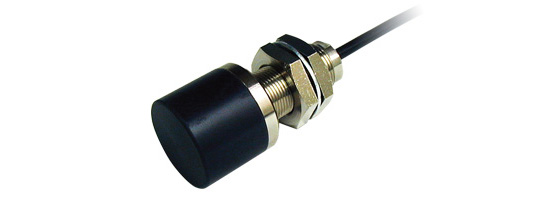

Space Sensors
■Features
●Eddy current type
●Miniature, lightweight
●Single power source (built-in stabilized power-supply circuit)
●Waterproof construction
■Main applications
●Detection of microscopic vibrations of motors and machine parts
●Measurement and monitoring of rotation behavior and reciprocating fluctuation
●Measurement of strain and parallelism of chassis
●Detection and positioning of metal
●Measurement and monitoring of the displacement of metal
●Detection of the rotation of gears, etc.
●Measurement of the vibrations of turbine shaft
●Positioning of the table of a processing machine
●Measurement of load
SS-1010D
| Item | Specifications |
|---|---|
| Power
supply voltage (ripple (p-p): 5% or less) |
DC.+5V to +18V |
| Stabilized power supply circuit | ー |
| Consumption current | Max. 15mA |
| Measurement range | 0.0㎜ to 1.2㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) |
2V to 5.2V (supply voltage DC 15V) |
| Frequency characteristic | DC.to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー20℃ to +85℃ |
| Protective structure | IP65 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 50kgf-cm or less |
* If you need an indicator, please consult us.

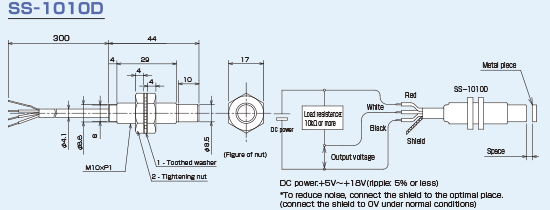

■Dimensional outline drawing (unit: mm), scale not equal
SS-1210V
| Item | Specifications |
|---|---|
| Power
supply voltage (ripple (p-p): 5% or less) |
DC.+12V to +25V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 8mA |
| Measurement range | 0.0㎜ to 3.5㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) |
1.2V to 3.8V |
| Frequency characteristic | DC .to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー20℃ to +85℃ |
| Protective structure | IP67 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 100 kgf･ｃｍ or less |
* If you need an indicator, please consult us.

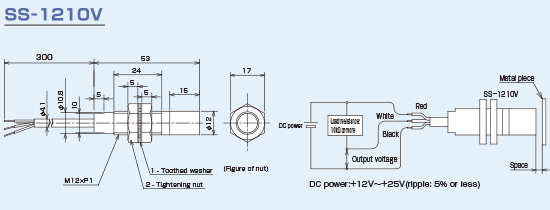

■Dimensional outline drawing (unit: mm), scale not equal
SS-203
| Item | Specifications |
|---|---|
| Power
supply voltage (ripple (p-p): 5% or less) |
DC +12V to +25V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 8mA |
| Measurement range | 0.5㎜ to 5.5㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) |
1.0V to 4.0V |
| Frequency characteristic | DC to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー10℃ to +70℃ |
| Protective structure | IP67 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 100 kgf･ｃｍ or less |
* If you need an indicator, please consult us.

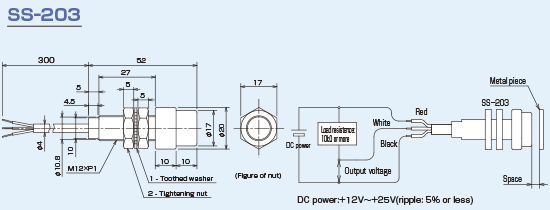

■Dimensional outline drawing (unit: mm), scale not equal
SS-2810H
| Item | Specifications |
|---|---|
| Power
supply voltage (ripple (p-p): 5% or less) |
DC.+12V to +17V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 8mA |
| Measurement range | 0.0㎜ to 9.5㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) |
0.8V ～ 4.1V |
| Frequency characteristic | DC to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー20℃ to +85℃ |
| Protective structure | IP65 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 150 kgf･ｃｍ or less |

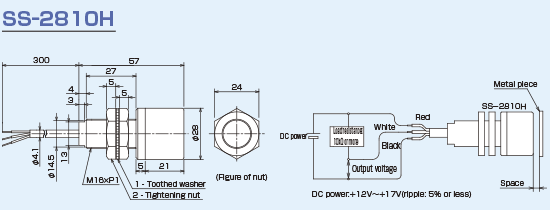

■Dimensional outline drawing (unit: mm), scale not equal
SS-280L
| Item | Specifications |
|---|---|
| Power
supply voltage (ripple (p-p): 5% or less) |
DC.+12V to +17V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 8mA |
| Measurement range | 0.0㎜ to 12㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) |
0.8V to 5.3V |
| Frequency characteristic | DC. to 5ｋHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー20℃ to +85℃ |
| Protective structure | IP65 |
| Vibration performance | 10Hz to 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 150 kgf･ｃｍ or less |

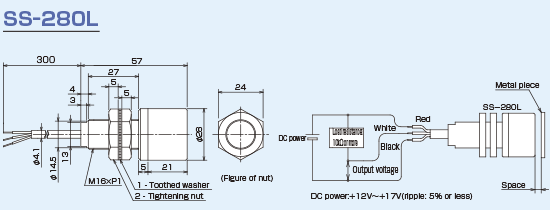

■Dimensional outline drawing (unit: mm), scale not equal
SS-390H
| Item | Specifications |
|---|---|
| Power
supply voltage (ripple (p-p): 5% or less) |
DC.+12V to +17V |
| Stabilized power supply circuit | Built-in |
| Consumption current | Max. 10mA |
| Measurement range | 0.0㎜ to 15㎜ |
| Resolution | 0.2％F.S. |
| Output voltage (iron □40×3mm) |
0.5V to 4.7V (iron□80×3㎜) |
| Frequency characteristic | DC. to 5kHz(-3dB) |
| Output form | Open collector |
| Operating temperature range | ー10℃ to +60℃ |
| Protective structure | IP65 |
| Vibration performance | 10H z t o 55Hz double amplitude: 1.5㎜ |
| Impact resistance | 50G |
| Tightening torque | 140 kgf･ｃｍ or less |

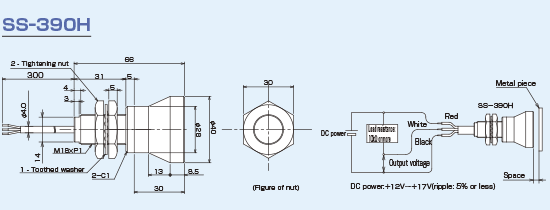

■Dimensional outline drawing (unit: mm), scale not equal
