Pass type counting Sensors
CS□□0A

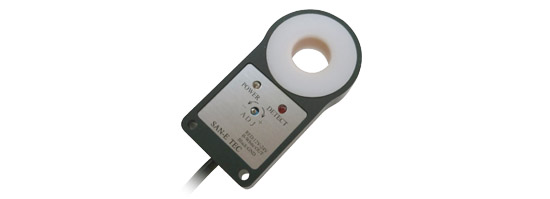

The sensor detects metal bodies that pass through a pipe and allows discrimination of the difference of materials and sizes.
■Features
●Compact size with built-in amplifier
●Both NPN and PNP types are available
| Item | Specifications | ||||
|---|---|---|---|---|---|
| Model name | CS300A | CS250A | CS200A | CS150A | CS100A |
| Power supply voltage | ＤＣ＋12Ｖ to ＋24Ｖ（ripple: 5% or less） | ||||
| Consumption current | 30ｍＡ or less | ||||
| Non-contact output | MAX DC 30V drain current, Max 100mA | ||||
| Operation | CSxx0A-x : Open drain output, CSxx0A-xP : Open collector output |
||||
| Detectable material | Metals such as iron, stainless steel and brass | ||||
| Detection hole diameter | φ30mm | φ25mm | φ20mm | φ15mm | φ10mm |
| Minimum detected body (steel ball) size | 6mm | 5mm | 4mm | 3mm | 2mm |
| OFF delay | 0 sec : CSxx0A-0, 0.1 sec : CSxx0A-1, 0.2 sec : CSxx0A-2 |
||||
| Operating temperature and humidity | −10℃〜＋60℃ R.H.15％〜90％（no condensation） |
||||

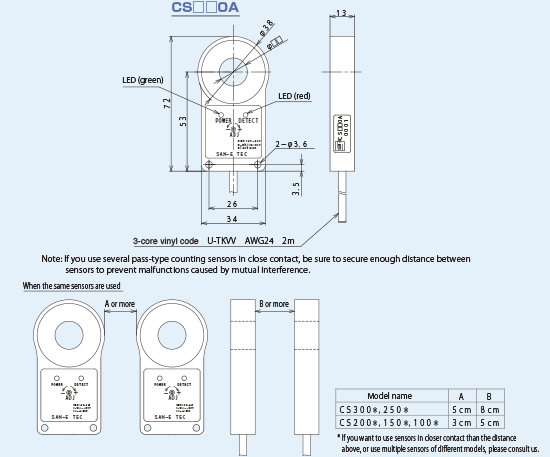

■Dimensional outline drawing (unit: mm), scale not equal
