Torque Sensors

磁歪式回転トルクセンサ

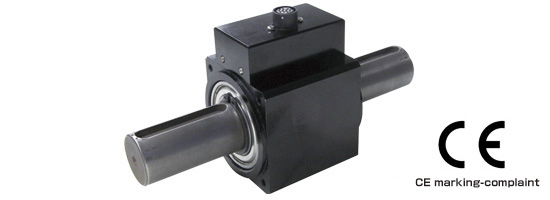

Magnetostrictive Rotating Torque Sensors built-in Amplifier – MTS Series

■Features
Small size, lightweight
Built-in Amplifier
Noncontact type, high reliability, high responsiveness
Easy axis centering (spigot joint)
Output immediately after startup
External zero reset function

Standard specifications
Accuracy ±0.3%FS(CW/CCWcontinuous operation
±0.1%FS(CW or CCW switching operation) <Option setting>
Power supply voltage DC±12V±0.5V
Current consumption ±200mA
Output voltage −2V to+2V
Responsiveness to 3kHz
Operating temperature range −10℃ to+60℃
Storage temperature range −20℃ to+85℃
Humidity range 15%R.H.〜85%R.H(No condensation
Zero-point temperature coefficient ±0.4%FS/10℃
IP code (DINEN60529) IP60
Attached cable length ※2m
For specifications indicated by *, please consult us separately. IP65-compatible products are also available.



Mechanical specifications
Model Rated
torque

[Nm]
Shaft
diameter

[mm]
Torsional
rigidity

[Nm/rad]
Maximum
rotations

[r.p.m]
Moment of
inertia

[gcm2]
Allowable
overload

[%]
Critical
overload

[%]
MTS001 1 6 140 8,000 0.8 200 400
MTS002 2 8 450 8,000 2.5 200 400
MTS010 10 10 1,100 8,000 7.1 200 400
MTS030 30 12 2,230 8,000 20 200 400
MTS100 100 20 16,100 8,000 190 200 400
MTS200 200 22 23,600 6,000 280 200 400
MTS500 500 30 78,600 6,000 1,210 200 400
MTS1000 1000 35 142,000 5,000 2,380 200 400
MTS2000 2000 45 371,000 4,000 7,400 200 400
MTS3000 3000 50 552000 4,000 12,040 200 400

The torsional rigidity indicates the value when the couplings are fixed at points 5mm from both ends of the case.

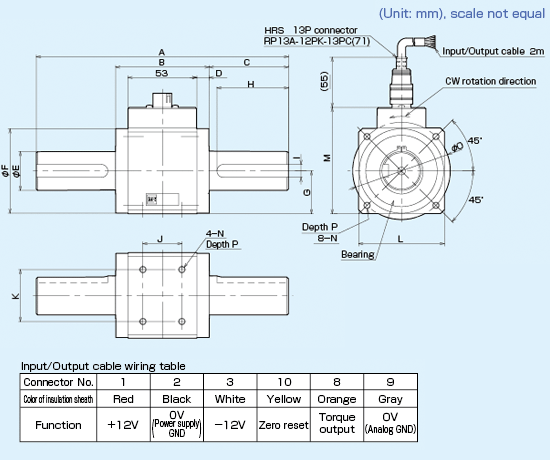

List of dimensions (standard specifications)MTSシリーズ図

Model A B C D E F G H I J K L M N O P Bearing
MTS001 80 53 13.5 −2.5 6h7 24H7 18.5 27 27 37.5 58 M3 36 6 FL626ZZ
MTS002 80 53 13.5 −2.5 8h7 24H7 18.5 27 27 37.5 58 M3 36 6 628ZZ
MTS010 93 62 15.5 4.5 10h7 36H7 18.5 14 3 27 27 37.5 58 4-M4/8-M3 42 6 6200ZZ
MTS030 126 64 31 5.5 12h7 45H7 23 25 4 30 30 46 67 M4 54 6 6301ZZ
MTS100 155 69 43 8 20h7 54H7 27 40 6 30 35 55 70 M4 62 10 6004ZZ
MTS200 155 69 43 8 22h7 54H7 27 40 6 30 35 55 70 M5 62 10 60/22ZZ
MTS500 194 72 61 9.5 30h7 65H7 33 55 8 30 40 66 82 M5 75 8 6006ZZ
MTS1000 206 74 66 10.5 35h7 72H7 36.5 60 10 33 45 73 89 M5 84 10 6907ZZ
MTS2000 234 78 78 12.5 45h7 85H7 43 70 14 35 50 86 102 M5 97 10 6009ZZ
MTS3000 250 80 85 12.5 50h7 92H7 46.5 75 16 35 55 93 109 M5 104 10 6010ZZ
MTS001 and MTS002 have a spigot joint applied to the hole unlike the one shown in the figure.





カードリーダ用磁気ヘッド

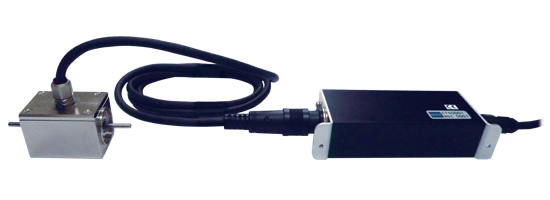

Magnetostrictive Rotating Torque Sensors with separate Amplifier - CTS Series

■Features
Small size, lightweight
Most suitable foe embedding into systems
Noncontact type, high reliability
Easy axis centering (spigot joint)
Output immediately after startup
External zero reset function

Standard specifications
Model Rated
torque

[Nm]
Shaft
diameter

[mm]
Torsional
rigidity

[Nm/rad]
Maximum
rotations

[r.p.m]
Moment of
inertia

[gcm2]
Allowable
overload

[%]
Critical
overload

[%]
CTS0001 0.1 6 19.9 10,000 0.34 200 400
CTS0005 0.5 6 182 10,000 0.60 200 400

The torsional rigidity indicates the value when the couplings are fixed at points 3mm from both ends of the case.



Standard specifications

Model CTS series
Accuracy ±0.3%FS(CW/CCW(CW/CCW continuous operation
±0.1%FS(CW or CCW switching operation) <Option setting>
Power supply voltage DC±12V±0.5V
Current consumption ±200mA
Output voltage −2V to+2V
Responsiveness to1kHz
Operating temperature range −10℃ to +60℃
Storage temperature range −20℃ to +85℃
Humidity range 15%R.H.〜85%R.H.(No condensation
Zero-point temperature coefficient ±0.4%FS/10℃
IP code (DINEN60529) IP60
Attached cable length 2m
For specifications indicated by *, please consult us separately. IP65-compatible products are also available.

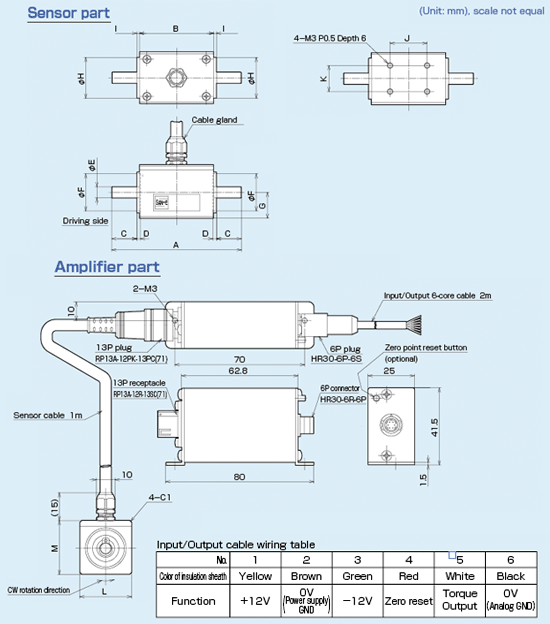

List of dimensions (standard specifications) (Unit: mm), scale not equalMTSシリーズ図

Model A B C D E F G H I J K L M Bearing
CTS0001 70 40 13.5 2 3h7 20H7 14 22h8 1.5 20 14 28 29 FL623ZZ
CTS0005 70 40 13.5 2 6h7 20H7 14 22h8 1.5 20 14 28 29 FL606ZZ




カードリーダ用磁気ヘッド

Embedded Magnetostrictive Rotating Torque Sensors - SCTS Series

■Features
Most suitable for embedding into mass production products
Low-priced
Lightweight, compact design
High responsiveness
Available in 0.1Nm to 0.5Nm ratings
Single power supply operation
Sensor part and Amplifier part can be separated by the connector
Available in wide operating temperature range

Standard specifications

Rated torque 0.1Nm〜0.5Nm
Power supply voltage DC+5V
Current consumption Approx. 200mA
Output voltage 0V to +5V(0Nm:+2.5V)
Responsiveness to 1kHz
Allowable overload 200%
Weight 40g
Operating
temperature
range
Sensor part −30℃ to +120℃
Amplifier part −10℃ to +60℃
Humidity range 15% R.H.〜85% R.H. (No condensation
For specifications indicated by *, please consult us separately.


List of dimensions (standard specifications)MTSシリーズ図
